5주차 ( 2023.01.23~2023.01.27 ) FPGA 연결

1. 2023.01.25 ( 수 )

쿼터스로 베릴로그 재작성

시뮬레이션 돌리기

module dd(clk,clk_pch,rst,me,pch,sl_in,sl0,sl_b0,sl1,sl_b1,sl2,sl_b2,sl3,sl_b3,timing,sl_temp,sl_b_temp,sl,sl_b,wl,se);
input clk,rst,me,clk_pch;
output pch,sl,wl,se;
input [0:3] sl_in;
output reg sl0,sl_b0,sl1,sl_b1,sl2,sl_b2,sl3,sl_b3;
input timing,sl_temp,sl_b_temp;
output reg sl_b;
endmodule
//----------negedge clk D ff ---------
module negedge_Dff(q,din,clk,rst);
input din,clk,rst;
output reg q;

always @(negedge rst or negedge clk) begin
if(rst==0 )
q<=0;
else
q<=din; end

endmodule

//----------posedge clk D ff---------
module posedge_Dff(q,din,clk,rst);
input din,clk,rst;
output reg q;
always @(negedge rst or posedge clk) begin
if(rst==0 )
q<=0;
else
q<=din;
end

endmodule


  //------------------SL 신호-----------------
 module SL_signal(SL_in,S0,S1,S2,S3,S_B0,S_B1,S_B2,S_B3);
input [0:3] SL_in;
output reg S0,S1,S2,S3,S_B0,S_B1,S_B2,S_B3;

 always @(SL_in) begin
  if (SL_in[0]==1)   S0=0;
 else if(SL_in[0]==0) S0=1;

 if (SL_in[1]==1)   S1=0;
 else if(SL_in[1]==0)  S1=1;

   if (SL_in[2]==1)   S2=0;
 else if(SL_in[2]==0)  S2=1;

   if (SL_in[3]==1)   S3=0;
 else if(SL_in[3]==0)  S3=1;

S_B0= ~S0; S_B1= ~S1; S_B2= ~S2; S_B3= ~S3;  end
 endmodule

module SL_output(timing,SL_temp,SL_B_temp, SL,SL_B);
input timing,SL_temp,SL_B_temp;
output reg SL,SL_B;

always@(timing) begin
if(timing==1) begin
SL=SL_temp;
SL_B=SL_B_temp; end
else begin
SL=0;
SL_B=0; end
end
endmodule

module PCH(x,z,clk,rst);
input x,clk,rst;
output z;
wire d1,d2,d22,q2_not,q1,q2,q1_not;
 //q1,q2 q1'q2'
not(q2_not,q2);
not(q1_not,q1);
//d1 gate 연결
or(d1,q1,q2);
//d2 gate 연결
and(d2,x,q2_not);
or(d22,d2,q1);
//z gate연결
and(z,q1_not,q2);
negedge_Dff dff1(q1,d1,clk,rst);
negedge_Dff dff2(.q(q2),.din(d22),.clk(clk),.rst(rst));
endmoduleBASH

module testbench();

reg clk,rst,ME;
reg PCH_clk;
wire PCH,PCH_b;
PCH PCH_signal(ME,PCH,clk,rst);
not(PCH_b,PCH);
always begin
PCH_clk=~PCH_clk;
#2.5;
end

always begin
clk=~clk;
#5;
end
//negedge_Dff dff1(PCH,ME,clk,rst);
//not(PCH_b,PCH);

wire sl_timing,sl_timing_temp,se;
reg [0:3] SL_in;
negedge_Dff sl_temp1(sl_timing_temp,ME,clk,rst);
negedge_Dff sl_temp2(sl_timing,sl_timing_temp,clk,rst);
posedge_Dff se_siganl(se,sl_timing,clk,rst);

wire SL0_temp,SL1_temp,SL2_temp,SL3_temp,SL_B0_temp,SL_B1_temp,SL_B2_temp,SL_B3_temp;
wire SL0,SL1,SL2,SL3,SL_B0,SL_B1,SL_B2,SL_B3;

SL_signal SL_siganl(SL_in,SL0_temp,SL1_temp,SL2_temp,SL3_temp,SL_B0_temp,SL_B1_temp,SL_B2_temp,SL_B3_temp);

SL_output SL_output0(sl_timing,SL0_temp,SL_B0_temp,SL0,SL_B0);
SL_output SL_output1(sl_timing,SL1_temp,SL_B1_temp,SL1,SL_B1);
SL_output SL_output2(sl_timing,SL2_temp,SL_B2_temp,SL2,SL_B2);
SL_output SL_output3(sl_timing,SL3_temp,SL_B3_temp,SL3,SL_B3);

initial begin ME=0; rst=0; SL_in=4'b0011; clk=0;PCH_clk=0;
// i1=4'b0001; i2=4'b0010; i3=4'b0100; i4=4'b1000;
#5 ME=1; rst=1;
#35
$finish;
end
endmoduleBASH

2. 2023.01.27 ( 금 )

2.1. 코드수정

`timescale 1ns / 1ps

module feram(clk,clk_pch,rst,ME,pch,pch_b,SL_in,SL0,SL1,SL2,SL3,SL_B0,SL_B1,SL_B2,SL_B3,sl_timing,se);
input clk,rst,ME,clk_pch;
output pch,pch_b,se,sl_timing;
input [0:3] SL_in;
output SL0,SL_B0,SL1,SL_B1,SL2,SL_B2,SL3,SL_B3;
wire pch,pchtemp;
wire pch_b;
//negedge_Dff PCHDFF(pchtemp,ME,clk,rst);
wire pchtemp1,me_not;
not(me_not,ME);
PCH PCH_signal(ME,pch,clk,rst);

//and(pch,clk,me_not);

not(pch_b,pch);

wire SL0_temp,SL1_temp,SL2_temp,SL3_temp,SL_B0_temp,SL_B1_temp,SL_B2_temp,SL_B3_temp;
wire sl_timing_temp;
negedge_Dff sl_temp1(sl_timing_temp,ME,clk,rst);
posedge_Dff sl_temp2(sl_timing,sl_timing_temp,clk,rst);
negedge_Dff se_siganl(se,sl_timing,clk,rst);


SL_signal SL_siganl(SL_in,SL0_temp,SL1_temp,SL2_temp,SL3_temp,SL_B0_temp,SL_B1_temp,SL_B2_temp,SL_B3_temp);

SL_output SL_output0(sl_timing,SL0_temp,SL_B0_temp,SL0,SL_B0);
SL_output SL_output1(sl_timing,SL1_temp,SL_B1_temp,SL1,SL_B1);
SL_output SL_output2(sl_timing,SL2_temp,SL_B2_temp,SL2,SL_B2);
SL_output SL_output3(sl_timing,SL3_temp,SL_B3_temp,SL3,SL_B3);

endmodule

//----------negedge clk D ff ---------
module negedge_Dff(q,din,clk,rst);
input din,clk,rst;
output reg q;

always @(negedge rst or negedge clk) begin
if(rst==0 )
q<=0;
else
q<=din; end

endmodule

//----------posedge clk D ff---------
module posedge_Dff(q,din,clk,rst);
input din,clk,rst;
output reg q;
always @(negedge rst or posedge clk) begin
if(rst==0 )
q<=0;
else
q<=din;
end

endmodule


  //------------------SL 신호-----------------
 module SL_signal(SL_in,S0,S1,S2,S3,S_B0,S_B1,S_B2,S_B3);
input [0:3] SL_in;
output reg S0,S1,S2,S3,S_B0,S_B1,S_B2,S_B3;

 always @(SL_in) begin
  if (SL_in[0]==1)   S0=0;
 else if(SL_in[0]==0) S0=1;

 if (SL_in[1]==1)   S1=0;
 else if(SL_in[1]==0)  S1=1;

   if (SL_in[2]==1)   S2=0;
 else if(SL_in[2]==0)  S2=1;

   if (SL_in[3]==1)   S3=0;
 else if(SL_in[3]==0)  S3=1;

S_B0= ~S0; S_B1= ~S1; S_B2= ~S2; S_B3= ~S3;  end
 endmodule

module SL_output(timing,SL_temp,SL_B_temp, SL,SL_B);
input timing,SL_temp,SL_B_temp;
output reg SL,SL_B;

always@(timing) begin
if(timing==1) begin
SL=SL_temp;
SL_B=SL_B_temp; end
else begin
SL=0;
SL_B=0; end
end
endmodule

module PCH(x,z,clk,rst);
input x,clk,rst;
output z;
wire d1,d2,d22,q2_not,q1,q2,q1_not;
 //q1,q2 q1'q2'
not(q2_not,q2);
not(q1_not,q1);
//d1 gate 연결
or(d1,q1,q2);
//d2 gate 연결
and(d2,x,q2_not);
or(d22,d2,q1);
//z gate연결
and(z,q1_not,q2);
negedge_Dff dff1(q1,d1,clk,rst);
negedge_Dff dff2(.q(q2),.din(d22),.clk(clk),.rst(rst));
endmoduleBASH

`timescale 1ns / 1ps
module testbench();
reg clk,rst,ME,PCH_clk;
wire pch,PCH_b,sl_timing,se;

reg [0:3] SL_in;
wire SL0,SL1,SL2,SL3,SL_B0,SL_B1,SL_B2,SL_B3;

always @(posedge ME) begin
clk=1;
forever #5 clk=~clk;
end
always @(posedge ME) begin
PCH_clk=1;
forever #2.5 PCH_clk=~PCH_clk;
end

feram feram1(clk,PCH_clk,rst,ME,pch,PCH_b,SL_in,SL0,SL1,SL2,SL3,SL_B0,SL_B1,SL_B2,SL_B3,sl_timing,se);

initial begin ME=0; rst=0; SL_in=4'b0011; clk=0;PCH_clk=0;
// i1=4'b0001; i2=4'b0010; i3=4'b0100; i4=4'b1000;
#5 ME=1; rst=1;
#35
$finish;
end
endmoduleBASH

2.2. 쿼터스 연결

연결완 !

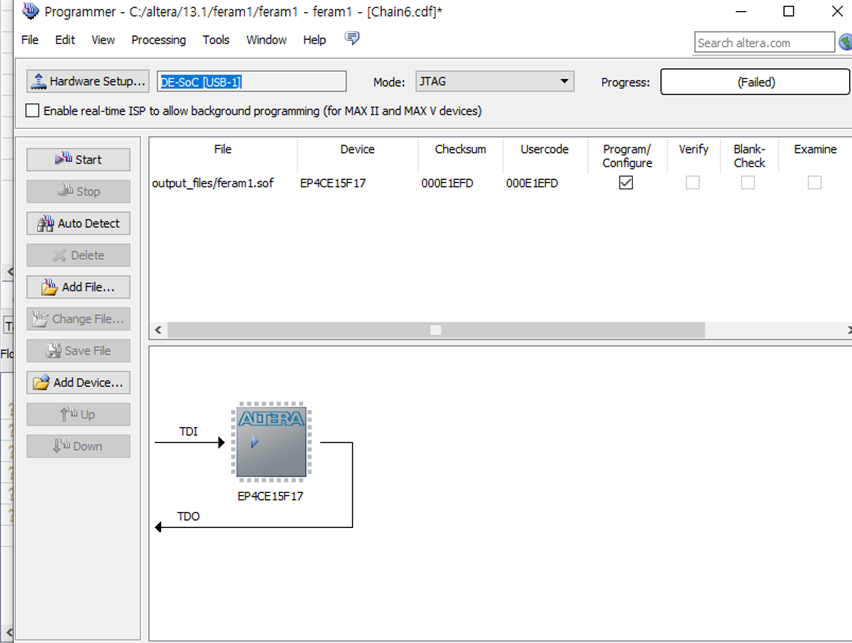

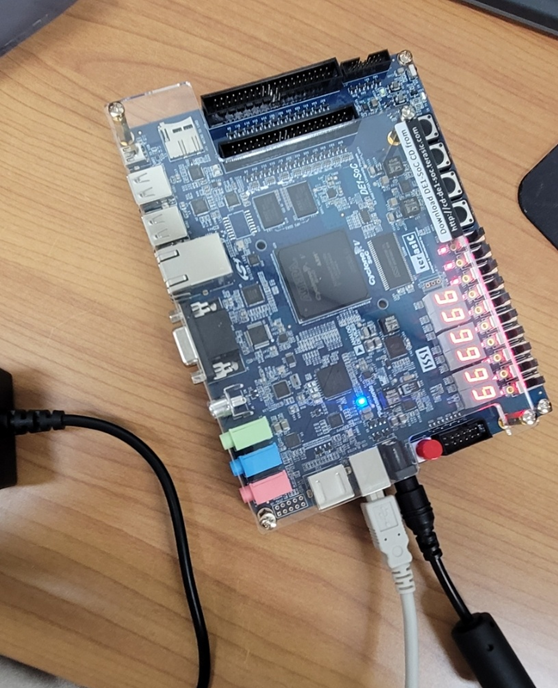

2.3. FPGA 연결
